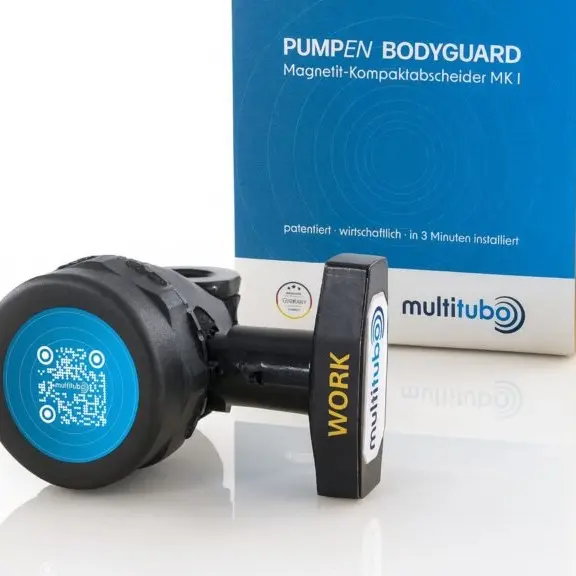

The Pumpen Bodyguard impresses with its compact design and easy integration into existing systems. This patented product is revolutionizing the installation and maintenance of heating systems. Thanks to the patented technology, rust particles that can damage your heating systems can be removed during operation – dry, without rinsing or refilling .

The advantages at a glance:

• Easy installation: PUMPEN Bodyguard is very easy to install and compatible with all common 130 mm pumps.

• No pipework or cutting required – saves 2–3 hours of installation time.

• Compact and extremely versatile - Can be used before and after the pump and is usable 360°.

• Dry cleaning - During operation, turn the service handle with patented system ball, wipe away iron sludge– without rinsing, without refilling.

• Highest magnetic power - Powerful neodymium high-performance magnet, best in class available in the market, in the 50 mm compact separator range

• High efficiency - Full performance with minimal impact on the circulation volume thanks to our Omega water flow system.

• Immediate protection - Protects pumps, valves and components immediately from Iron particles & sludge

Areas of application:

• Radiator systems

• Underfloor heating systems, especially using pipes without oxygen barrier

• Heat pump systems, in secondary circuit after the buffer tank

Technical Specification -

Body Material: Bronze

Internal Components Material: Brass

Sealing System (Control Ball): Double conical seal for enhanced safety

Sealing System (Actuator Shaft): Double O-ring for enhanced safety

Approved Operating Temperature - 80°C (continuous)

Operating Pressure: 6 bar
